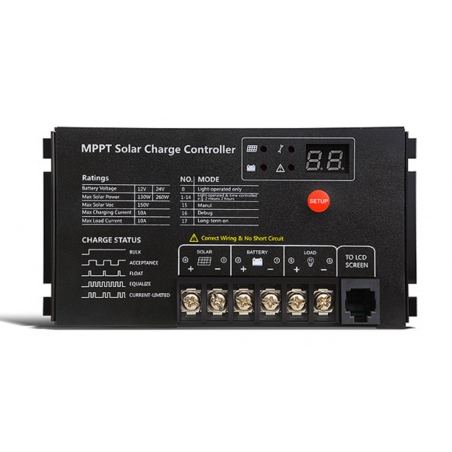

Lataussäädin MPPT 10A

49,00 €
Sisältää alv:n
Määrä
Toimitus 7-10 arkipäivää

Model

MT2410
System voltage 12V 24V
Max. input power of solar panel 130W 260W
Transfer efficiency ≤96% ≤97%
Rated charge/ discharge current 10A
No load loss <15mA
Max. input voltage of solar panel <150V
MPPT tracing efficiency >99%
Over voltage protection 16.5V 33.0V
Limited charge voltage 15.5V 31.0V
Equalizing charge voltage 15.2V 30.4V
Equalizing charge interval 30 days
Boosting charge voltage 14.4V 28.8V
Floating charge voltage 13.8V 27.6V
Over-discharge recover voltage 12.5V 25.0V
Over discharge voltage 11.0V 22.0V
Boosting charge time 2 hours
Equalizing charge time 1 hour
Over temperature protection Yes
Light-operated voltage (on) 5V
Light-operated voltage (off) 6V
Light-operated delay time 5min
Working temperature -35℃~+65℃
Weight 430g
Altitude ≤3000m
Dimension 143*71*37.4 (mm)
Installation dimension 139*48(mm)
Overload protection Load current≥1.25 times rated current, cut off the load within 10 seconds;  Load current≥1.5 times rated current, cut off the load within 5 seconds
Protections 1.Reverse connection. 2.Inner over temperature. 3.The voltage of PV input terminal is over value. 4.Over load  5.Reverse charging protection at night. 6. TVS lightning protection 7. Waterproof: IP 64
